Modular Cleanroom Design for Semiconductor Fabs: Coordinating ISO Class, Pressure Cascade and FFU Layout
A semiconductor modular cleanroom is not simply a faster construction method. It is a coordinated envelope, airflow and qualification platform where ISO class, pressure cascade, FFU coverage, air change strategy, utilities and expansion sequence must be engineered together before modules reach the fab floor.
ISO ClassDefine particle targets by process risk and occupancy state.
PressureBuild stable cascades from critical zones to support areas.
FFUCoordinate filter coverage, airflow pattern and service access.
ExpansionPlan modules, utilities and qualification for future capacity.
For fabs expanding tool capacity, metrology rooms, pilot lines or support laboratories, modular cleanroom design can reduce site disruption and shorten the path from layout approval to qualification. The risk is assuming that modular means generic. In semiconductor work, the module grid must be shaped around contamination sensitivity, thermal stability, pressure relationships, ceiling services and maintenance access.

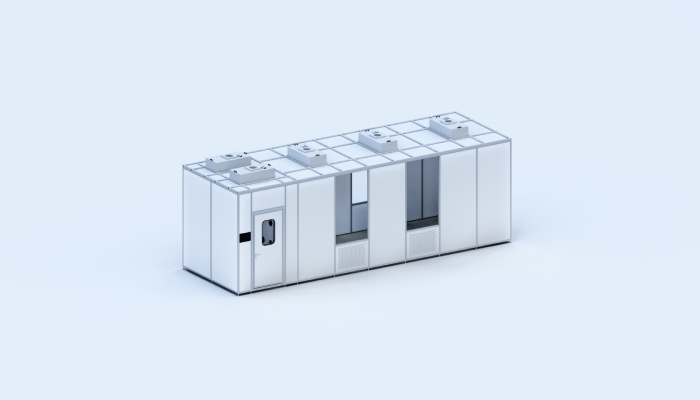

Integrated cleanroom system. Modular wall panels, roof FFU positions and service zones must be coordinated before the cleanroom package is released.
Requirement Definition
Start with Process Risk, Not Only a Room Name
ISO 14644-1 classifies cleanrooms by airborne particle concentration, but the design decision starts earlier: which tools, wafer handling steps, inspection processes or packaging operations need the clean zone, and in which occupancy state must the classification be achieved? A room called "ISO 5" may need unidirectional air at a tool interface, while the surrounding support zone may perform acceptably at a different class.
For modular projects, capture the user requirement specification before freezing panel dimensions. Define process heat load, people and material flow, ceiling service loads, make-up air, exhaust, humidity tolerance, ESD strategy, AMC sensitivity and expansion route. Once these are visible, modular construction becomes a disciplined engineering method instead of a collection of panels.
Pressure Cascade
Pressure Cascade Must Be Designed Around Doors, Airlocks and Exhaust
A stable pressure cascade prevents uncontrolled air migration when personnel, materials or tools move between zones. In a semiconductor fab, pressure strategy can protect a critical clean zone from a lower-grade service corridor, or protect the surrounding facility from a chemical process room, depending on the hazard and contamination route.
The modular envelope has to support this cascade. Wall joints, ceiling penetrations, doors, pass-throughs, return-air paths and service sleeves should be specified before site assembly. A pressure diagram that ignores leakage paths will not survive commissioning.
Example coordination logic for semiconductor modular cleanroom zones.
Zone
Typical design focus
Airflow/FFU implication
Envelope implication
Critical process bay
Highest cleanliness and thermal stability.
Higher FFU density and verified airflow pattern.
Sealed ceiling grid, flush wall interfaces and controlled returns.
Tool support area
Maintenance access without contaminating the bay.
Airflow matched to tool heat and service activity.
Access panels, service sleeves and pressure-stable doors.
Airlock or gowning
Controlled transfer between cleanliness levels.
Balanced supply/return to support door sequences.
Interlocks, seals and pressure monitoring points.

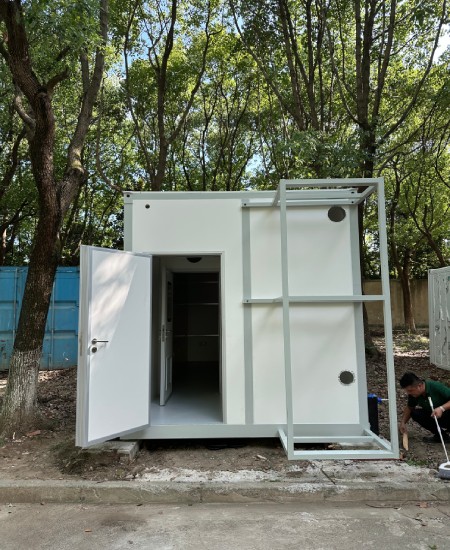

Site interface planning. Doors, penetrations, transfer openings and utility interfaces should be resolved before pressure cascade commissioning.
FFU and ACH
Do Not Treat ACH as a Stand-Alone Number
Air changes per hour can be useful for early sizing, but semiconductor cleanroom performance depends on supply velocity, filter coverage, heat load, return-air geometry, obstruction, recovery expectation and particle generation. The same ACH can produce different cleanliness results if FFUs are poorly located or if large tools block the air path.
ISO 14644-3 provides cleanroom test methods used to verify performance, including particle testing and supporting tests such as airflow, pressure difference, recovery and installed filter system leakage. In modular design, these tests should be anticipated during layout, not discovered after installation.
A good FFU layout defines serviceable filter modules, spare capacity, room-side access where needed, ceiling load capacity, electrical routing, control zoning and recovery goals. The modular grid should match these decisions so FFUs, lights, ceiling panels and access points do not compete for the same space.

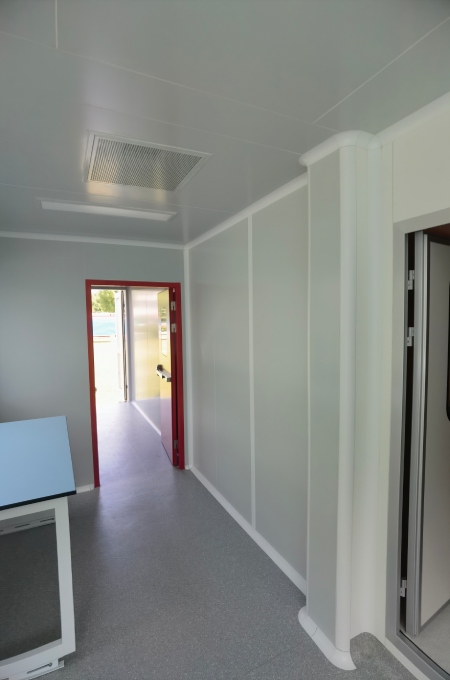

Mechanical service layer. HVAC, ducts, cable routes and maintenance access must be coordinated with the cleanroom ceiling grid and FFU plan.
Modular Envelope
The Cleanroom Envelope Must Be Repeatable Without Becoming Rigid
ISO 14644-4 addresses the process for creating a cleanroom from requirements through design, construction and start-up. For a modular fab project, this means the repeatable kit must still respond to site-specific loads, tool clearances, duct routes, material flow and qualification evidence.
Wonclean modular cleanroom systems combine cleanroom wall panels, ceiling grids, doors, windows, FFUs and support equipment into a coordinated package. The value is not only faster assembly. It is the ability to predefine details that otherwise become site conflicts: panel joints, corner transitions, ceiling suspension, filter cut-outs, cable entries, pass boxes, door interlocks and monitoring points.
Use a modular grid that matches tools, FFUs, ceiling lights and access panels.
Keep airlocks, doors and return paths consistent with the pressure cascade.
Reserve service access for filter replacement, controls and HVAC components.
Document design assumptions so future expansion can reuse the same cleanroom logic.

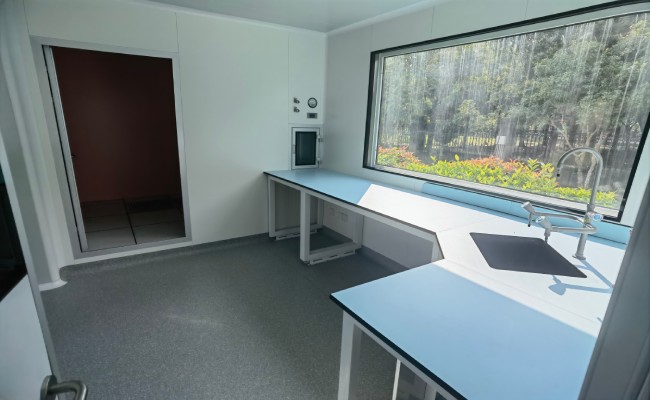

Interior envelope coordination. Clean wall panels, ceiling air devices, benches, windows and transfer points should support the same contamination-control logic.
Qualification Readiness
Design for Qualification Before the First Panel Is Installed
A modular cleanroom should be delivered with qualification evidence in mind. The project team should be able to trace user requirements to design qualification, installation checks, operational tests and final classification. Missing inspection records or vague airflow assumptions slow acceptance even when construction looks complete.
Practical turnover documents include layout drawings, pressure cascade diagrams, FFU schedules, filter certificates, ceiling load information, panel and sealant data, electrical/control diagrams, installation inspection records and commissioning test reports. When the cleanroom is planned as a system, qualification becomes confirmation rather than investigation.
Technical Fact Check
Source-Backed Facts Used in This Article
Fact used
Source
Design implication
Cleanroom classification is based on airborne particle concentration.
FFU/filter selection should include filter class, leak control and records.
Referenced Standards
Referenced Standards and Public Access Notes
ISO 14644-1: official ISO page for cleanroom air cleanliness classification by particle concentration.
ISO 14644-4: official ISO page for cleanroom design, construction and start-up.
ISO 14644-3: official ISO page for cleanroom test methods.
ISO 29463-1: official ISO page for high-efficiency filter classification and documentation. Full ISO standards are copyrighted and may require purchase or authorized access.
FAQ
Frequently Asked Questions
What makes a modular cleanroom suitable for semiconductor fabs?
A semiconductor modular cleanroom must coordinate ISO class, airflow, FFU layout, pressure cascade, ceiling loads, ESD requirements, service access and qualification documents. Fast installation alone is not enough.
Is ACH enough to size a semiconductor cleanroom?
No. ACH is only an early reference. The final design should also consider FFU coverage, airflow direction, heat load, return-air geometry, recovery target, obstruction and filter leakage control.
Why is pressure cascade important in modular cleanroom design?
Pressure cascade controls air migration between cleaner and less clean zones. It depends on supply and return balance, doors, airlocks, leakage paths, exhaust and room envelope sealing.
What documents should be prepared before qualification?
Prepare the URS, layout drawings, pressure cascade diagram, FFU schedule, filter data, ceiling load data, material records, inspection forms and commissioning test plan before final installation.
Plan the Cleanroom as a Qualified System
Wonclean modular cleanroom projects are strongest when the wall system, ceiling grid, FFUs, HVAC, pressure cascade and qualification evidence are engineered together. That is how modular construction becomes a reliable semiconductor capacity strategy.
